Introduction

Drawer slide selection starts with accurate measurement.

Choosing the wrong drawer slide length may cause:

• Drawer cannot close completely
• Limited extension
• Installation problems
• Reduced load performance

Before ordering drawer slides, cabinet manufacturers should understand how to measure cabinet dimensions correctly.

1. Measure the Cabinet Depth First

The most important measurement is the internal cabinet depth.

Example:

Cabinet depth: 500mm

Recommended slide: 450mm drawer slide

 Principle:

Drawer slide length should normally be slightly shorter than the available cabinet depth.

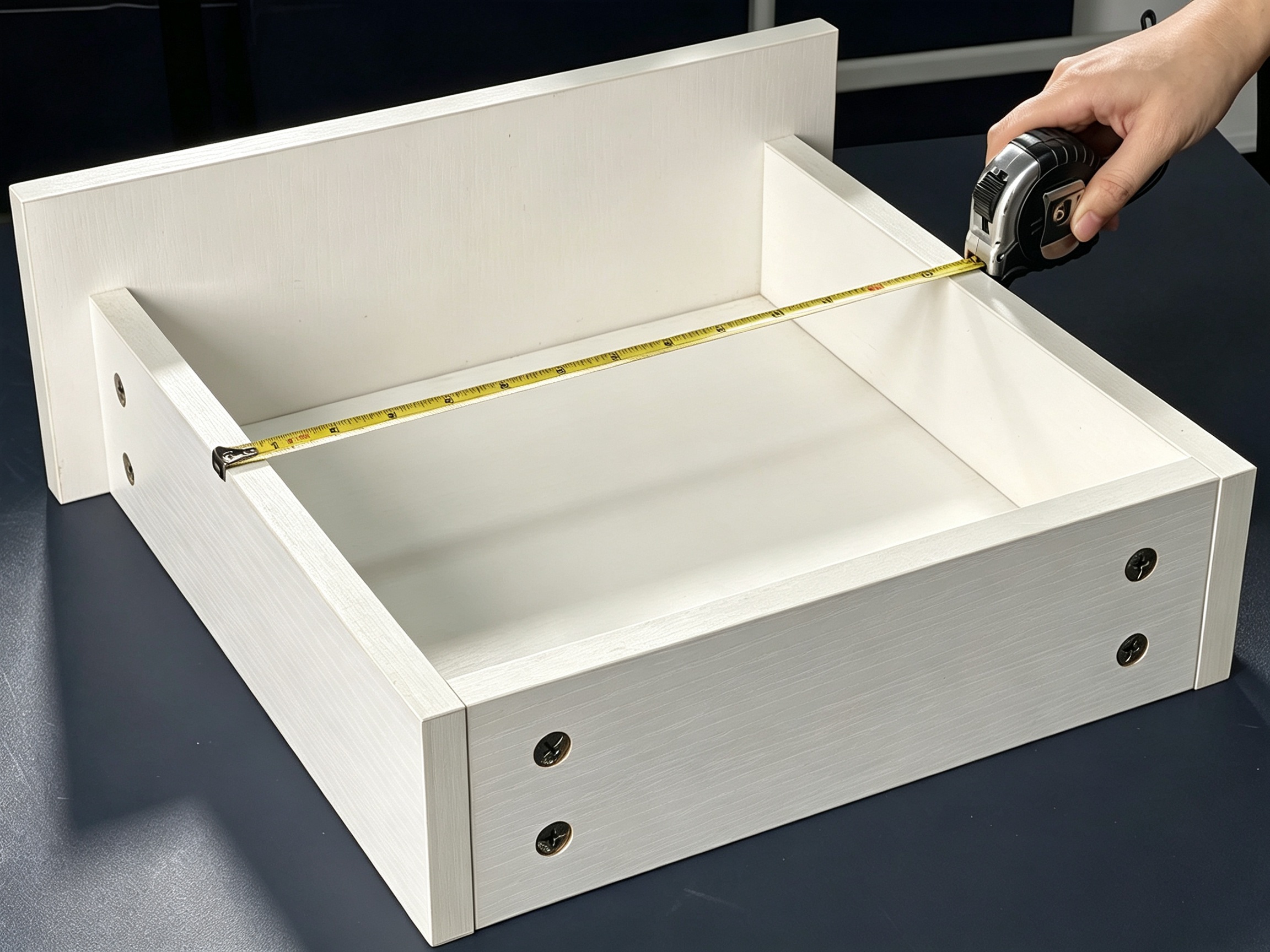

2. Measure the Existing Drawer Length

Measure:

• Drawer box length

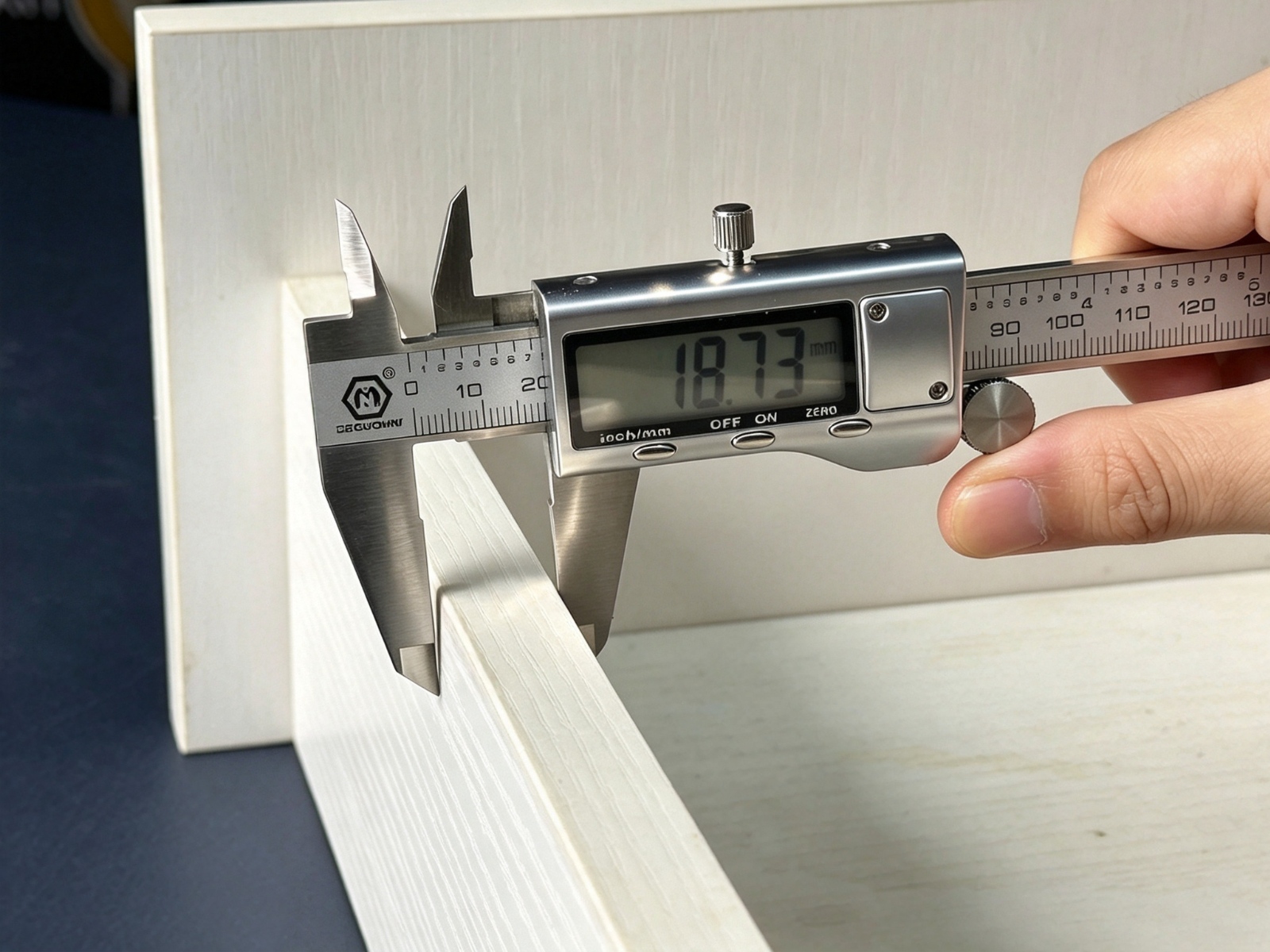

• Drawer side thickness
• Drawer bottom position

Do not measure only the drawer front size.

3. Understand Drawer Slide Length Options

Common sizes:

Slide Length	Application
250mm	Small drawers
300mm	Bathroom cabinets
350mm	Standard drawers
400mm	Kitchen drawers
450mm	Most kitchen applications
500mm	Deep storage drawers

4. How to Measure Undermount Drawer Slides

For undermount slides, pay attention to:

Drawer bottom clearance

Cabinet opening width

Drawer box dimensions

Locking device position

Undermount systems require more accurate cabinet manufacturing compared with side mount slides.

5. How to Measure Side Mount Drawer Slides

Side mount slides are easier.

Measure:

• Cabinet depth
• Drawer length
• Side clearance

Typical requirement:

Around 12.5mm clearance per side.

6. Full Extension vs Partial Extension Measurement

Explain:

Full extension:

Drawer opens completely.

Partial extension:

Only part of drawer comes out.

7. Common Measurement Mistakes

Mistake 1

Choosing slide length based on drawer front.

Wrong.

Mistake 2

Ignoring cabinet back clearance.

Mistake 3

Not considering drawer thickness.

Mistake 4

Using wrong slide type.

8. Professional Buying Checklist

Before ordering:

☑ Slide type

☑ Length

☑ Load capacity

☑ Extension

☑ Soft close or push open

☑ Installation method

☑ Cabinet structure

FAQ

How do I know what size drawer slide I need?

Measure the cabinet depth and choose a slide length slightly shorter than the available space.

Can drawer slides be longer than the drawer?

Usually no. The slide length should match the drawer design and cabinet depth.

What is the most common kitchen drawer slide size?

450mm full extension undermount drawer slides are widely used in kitchen cabinets.

How much clearance does a drawer slide need?

It depends on the slide type. Side mount slides typically require clearance on both sides, while undermount systems follow specific manufacturer dimensions.

Are undermount slides harder to install?

They require more precise measurements, but they provide better appearance and user experience.
