How Many Hinges Does a Cabinet Door Need?

How Many Hinges Should Be Used on a Cabinet Door?

A small, lightweight cabinet door commonly uses two concealed hinges.

Taller, wider or heavier doors may require three, four, five or more hinges. However, there is no universal hinge quantity that applies to every cabinet door.

The correct number depends on:

Door height
Door width
Total door weight
Door thickness
Door material
Hinge capacity
Mounting method
Frequency of use
Expected service life

The hinge manufacturer’s load chart and sample-door testing should always take priority over a general rule.

Quick Answer

A practical preliminary guide is:

Door Type	Common Starting Point
Small, lightweight cabinet door	2 hinges
Medium-height door	3 hinges
Tall wardrobe or pantry door	4 hinges
Very tall or heavy door	5 or more hinges
Extra-wide, glass or stone-faced door	Supplier calculation and testing required

This table is for initial planning only. It is not a final engineering specification.

Two doors of the same height may require different hinge quantities if their weight, width or material is different.

1. Why Does Hinge Quantity Matter?

Using the correct number of hinges helps:

Support the door securely
Reduce sagging
Maintain consistent gaps
Improve opening stability
Distribute stress across fixing points
Protect mounting plates and cabinet panels
Maintain soft-close performance
Extend the service life of the cabinet

Using too few hinges may lead to loose screws, door misalignment, premature wear or complete fixing failure.

Installing additional hinges can improve support, but simply adding as many hinges as possible is not always the correct solution. Excessive hinge quantity increases drilling, installation time and adjustment complexity.

2. Door Height

Door height is one of the first factors considered when determining hinge quantity.

A taller door normally requires more hinges because:

The distance between the upper and lower fixing points is greater
Tall doors are more likely to twist or warp
Door movement creates greater stress on the upper hinge
Maintaining alignment becomes more difficult

A short kitchen wall-cabinet door may work with two hinges, while a full-height wardrobe or pantry door may require four or more.

Height alone is not enough. A tall, lightweight aluminum-frame door may create a different load from a tall solid-wood door.

3. Door Weight

Door weight is one of the most important selection factors.

Heavier doors place greater force on:

Hinge cups
Hinge arms
Mounting plates
Fixing screws
Door panels
Cabinet side panels

Door weight should include all permanent components, such as:

Handles
Decorative panels
Mirrors
Glass
Metal frames
Stone or ceramic surfaces
Attached accessories

Do not calculate the required hinge quantity by simply dividing the door weight by the stated capacity of one hinge. The load is not always distributed equally among all hinges.

The upper hinge and its fixing points often experience greater pull-out stress than the lower hinges.

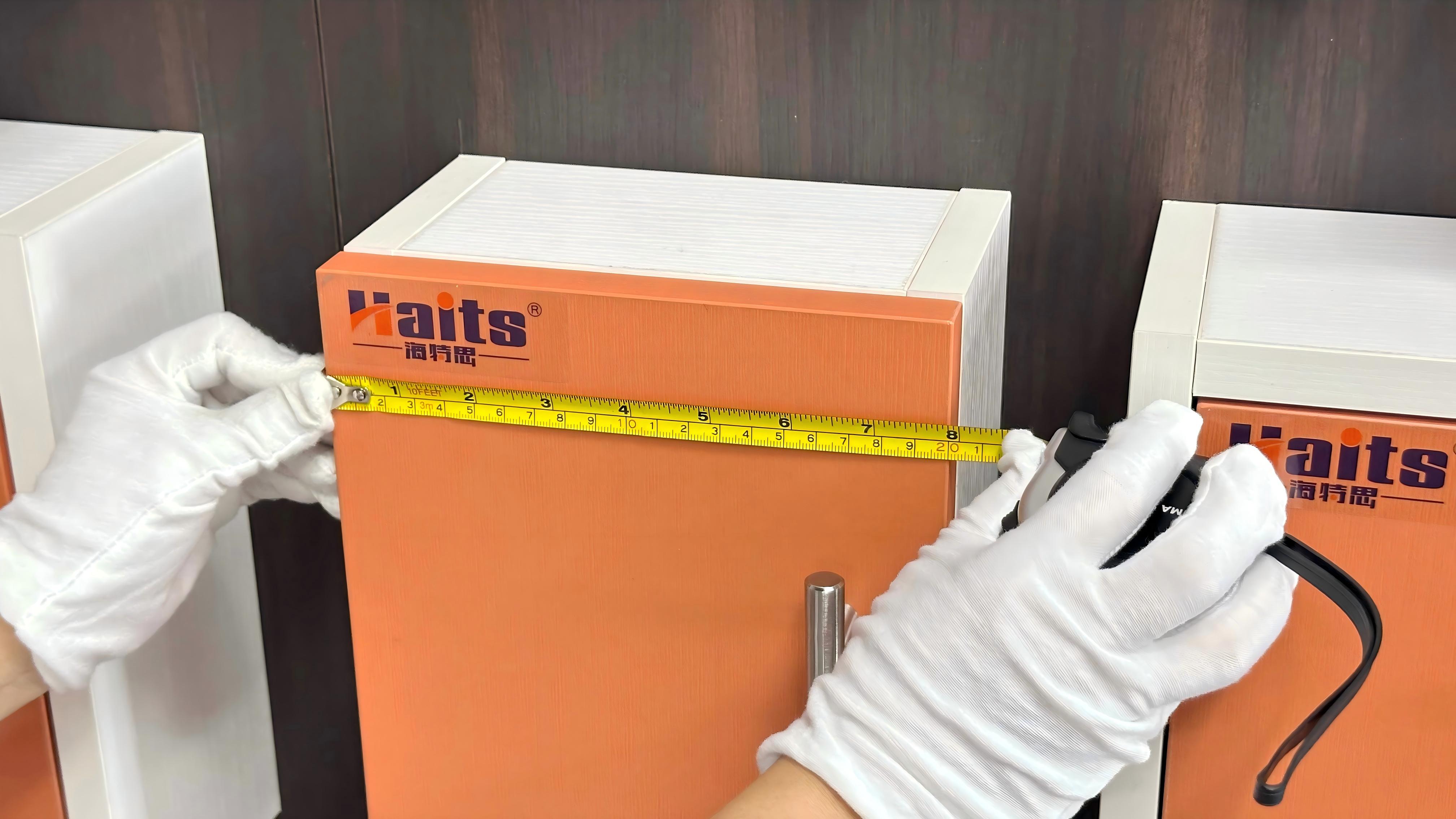

4. Door Width

A wide door creates greater leverage on the hinge system.

Even when two doors have the same weight and height, the wider door may place more stress on:

The hinge cup
Mounting-plate screws
Cabinet side panel
Upper fixing points

Wide doors may also move more during opening and closing.

For this reason, a hinge recommendation should ideally specify maximum door width as well as weight and height.

5. Door Thickness

Door thickness affects:

Cup-drilling depth
Distance between the cup and door edge
Hinge geometry
Opening clearance
Required hinge type
Available fixing strength

A thick door may require a hinge designed for thick-door applications.

Adding more standard hinges does not solve a geometry or clearance problem caused by an incompatible door thickness.

6. Door Material

Different materials create different installation and load requirements.

Particleboard or MDF

These materials are common in cabinet production, but screw-holding strength depends on density, thickness and fixing type.

Repeated screw removal can weaken the fixing holes.

Plywood

Plywood can provide good fixing strength, but quality and layer construction vary.

Solid Wood

Solid-wood doors may be heavy and can move because of humidity or temperature changes.

Glass or Mirror Doors

Glass and mirrored doors require compatible hinge systems, fixing methods and safety considerations.

The total assembled weight must be calculated.

Aluminum-Frame Doors

These doors may be lightweight, but the hinge must be compatible with the frame profile and fixing system.

Stone-, Ceramic- or Metal-Faced Doors

Decorative surfaces can add significant weight. These applications require supplier confirmation and physical testing.

7. Cabinet and Panel Strength

The hinge is only one part of the load-bearing system.

Performance also depends on:

Cabinet-side thickness
Door-panel strength
Screw type
Screw length
Mounting-plate fixing
Cup-fixing method
Drilling accuracy

A strong hinge cannot perform correctly if it is fixed to a weak, damaged or unsuitable panel.

For heavy doors, evaluate both the hinge capacity and the pull-out strength of the complete fixing system.

8. Opening Frequency

A frequently used kitchen or commercial cabinet door may need a more durable configuration than a rarely opened storage door.

High-frequency applications include:

Hotel furniture
Apartment kitchens
Office storage
Retail fixtures
Commercial cabinets
Frequently used wardrobes

For these projects, consider:

Additional support
Higher-cycle hinges
Stronger fixing methods
Regular inspection
Replacement availability

9. Soft-Close Performance and Hinge Quantity

Adding more soft-close hinges changes the total damping resistance.

Too little damping may allow a heavy door to close too quickly.

Too much damping may cause a light door to:

Close very slowly
Stop before reaching the cabinet
Require additional pushing

Some systems use damped hinges at every position. Others combine damped and non-damped hinges.

Follow the manufacturer’s recommended configuration and test the actual door assembly.

10. Preliminary Hinge-Quantity Guide

The following guide can support early project discussions:

Two Hinges

Commonly considered for:

Small kitchen-cabinet doors
Bathroom-vanity doors
Lightweight furniture doors
Short, narrow doors

Two hinges should not be selected automatically without confirming the door weight.

Three Hinges

Commonly considered for:

Medium-height doors
Heavier kitchen doors
Short wardrobe doors
Doors requiring improved stability

A third hinge can help control movement and reduce stress on the upper and lower hinges.

Four Hinges

Commonly considered for:

Tall wardrobe doors
Pantry doors
Heavy decorative doors
Frequently used project cabinets

Door width, weight and panel strength still require verification.

Five or More Hinges

May be required for:

Full-height wardrobe doors
Very heavy doors
Extra-wide doors
Doors with mirrors or decorative surfaces
High-frequency commercial applications

These doors should be reviewed using the supplier’s technical data and tested before production.

11. Where Should Additional Hinges Be Positioned?

For a two-hinge door, one hinge is normally positioned near the top and one near the bottom.

For doors using additional hinges:

Keep the upper and lower hinges at the specified end positions
Position additional hinges according to the manufacturer’s layout
Avoid interference with shelves and internal fittings
Maintain accurate alignment along the drilling line

In some applications, additional support may be concentrated toward the upper part of the door because the top fixing experiences significant pull-out force.

Do not assume that all additional hinges should be spaced equally. Follow the supplier’s recommended pattern.

12. Why the Upper Hinge Is Important

When a cabinet door is open, gravity creates leverage that pulls the upper part of the door away from the cabinet.

This means the upper hinge and mounting plate may experience substantial stress.

Signs of insufficient support include:

The upper mounting plate becoming loose
Door sagging
Widening gaps at the top
Damaged screw holes
Hinge-cup movement

Adding hinges may help distribute the load, but the fixing strength and panel condition must also be checked.

13. How to Determine the Correct Quantity

Step 1: Calculate the Complete Door Weight

Include the door panel, handle, glass, mirror and decorative materials.

Step 2: Record the Door Dimensions

Confirm:

Height
Width
Thickness

Step 3: Identify the Door Material

Provide the supplier with the panel construction and density where possible.

Step 4: Confirm the Application

Explain whether the door will be used in a kitchen, wardrobe, hotel, apartment or commercial environment.

Step 5: Select the Hinge System

Confirm:

Overlay type
Opening angle
Mounting plate
Soft-close requirement
Door-thickness compatibility

Step 6: Check the Manufacturer’s Load Chart

Use technical data for the exact hinge model—not a generic hinge category.

Step 7: Install a Complete Sample

Test the actual door, cabinet panel, screws, hinges and mounting plates together.

Step 8: Perform Repeated-Cycle Testing

Observe alignment, fixing security, closing movement and soft-close performance after repeated use.

14. Example Selection Scenarios

Small Kitchen Wall-Cabinet Door

Characteristics:

Short
Narrow
Lightweight
Standard usage

A two-hinge configuration may be appropriate after checking the supplier’s specifications.

Tall Pantry Door

Characteristics:

Tall
Frequently used
Increased leverage
Potentially heavy

It may require three, four or more hinges depending on its weight and width.

Full-Height Wardrobe Door

Characteristics:

Very tall
Large surface area
Greater risk of movement or warping

Four or more hinges may be required. Sample testing is strongly recommended.

Mirrored Wardrobe Door

Characteristics:

High assembled weight
Fragile decorative surface
Greater safety requirements

The hinge, frame, fixing system and complete door construction must be evaluated together.

Wide Decorative Cabinet Door

Characteristics:

Greater leverage
Added surface material
High visual alignment requirement

The door may require stronger hinges or additional hinge quantity even if its height is moderate.

15. Common Selection Mistakes

Choosing Only by Door Height

Doors of equal height can have very different weights and widths.

Ignoring Handles and Decorative Materials

Accessories and surface panels contribute to the total load.

Dividing Door Weight Equally Between Hinges

Hinge loading is not always evenly distributed.

Adding Hinges Without Checking the Fixings

Additional hinges cannot compensate for weak or damaged cabinet panels.

Assuming Every 35mm Hinge Has the Same Capacity

Cup diameter does not determine the hinge’s complete load performance.

Using Standard Hinges on Extra-Thick Doors

Door thickness affects geometry and opening clearance.

Ignoring Damping Resistance

Too many damped hinges can affect complete closing.

Skipping Sample Testing

A hinge that feels strong by hand may behave differently after installation on a full-size door.

Hinge-Quantity Buyer Checklist

Provide the following information when requesting a recommendation:

Door height
Door width
Door thickness
Complete door weight
Door material
Cabinet-panel material
Cabinet-panel thickness
Full overlay, half overlay or inset
Required opening angle
Soft-close requirement
Expected opening frequency
Installation environment
Fixing method
Required cycle life

A professional recommendation should identify the exact hinge, mounting plate, fixing method and suggested quantity.

Frequently Asked Questions

Are two hinges enough for a cabinet door?

Two hinges may be enough for a small, lightweight door. Confirm the door’s height, width, weight and material using the hinge manufacturer’s specifications.

How many hinges does a tall wardrobe door need?

A tall wardrobe door may require three, four, five or more hinges. The final quantity depends on the complete door weight, width and hinge system.

Does a heavy cabinet door need more hinges?

Usually, but quantity is only one part of the solution. The hinge strength, mounting plates, screws and panel materials must also support the load.

Can I add another hinge to stop a door from sagging?

An additional hinge may help if insufficient support is the cause. First check for loose screws, damaged panels, inaccurate drilling, worn hinges or a warped door.

Does every hinge support an equal part of the door weight?

Not necessarily. Load distribution changes with door dimensions, hinge position and fixing geometry. The upper fixing points may experience greater pull-out force.

Can too many soft-close hinges stop a door from closing?

Yes. Excessive damping may cause a light door to close too slowly or remain partially open. Follow the manufacturer’s damping recommendation.

Do wider doors need more hinges?

Wide doors create greater leverage and may require additional or stronger hinges even when their height is moderate.

How many hinges are needed for a mirrored door?

The complete assembled weight and frame construction must be evaluated. Use a compatible hinge system and obtain a specific recommendation from the supplier.

Should additional hinges be spaced equally?

Not always. Hinge spacing should follow the manufacturer’s recommended layout, which may place greater support near the top of the door.

Can hinge quantity compensate for a weak cabinet panel?

No. The fixing system and cabinet panel must provide adequate holding strength. Adding hinges to unsuitable material does not guarantee a safe installation.

Conclusion

The number of hinges required for a cabinet door cannot be determined by height alone.

A reliable hinge-quantity decision should consider:

Height
Width
Weight
Thickness
Material
Fixing strength
Opening frequency
Soft-close configuration

Small, lightweight doors often begin with two hinges, while tall or heavy doors may require three, four, five or more.

For cabinet manufacturers and project contractors, the safest process is to use the exact hinge supplier’s load chart, install a representative sample and test the complete door assembly before mass production.
