Full Overlay vs Half Overlay vs Inset Cabinet Hinges: A Complete Guide

Choosing the correct cabinet hinge is not only about selecting soft close, opening angle or hinge type.

One of the most important decisions in cabinet design is:

How does the cabinet door sit on the cabinet frame?

This relationship determines the required hinge type.

The three most common cabinet door configurations are:

• Full Overlay
• Half Overlay
• Inset

Understanding these differences helps cabinet manufacturers, joinery contractors and project buyers select the correct hinge solution.

1. What Does Cabinet Overlay Mean?

Cabinet overlay describes how much the cabinet door covers the cabinet opening or cabinet frame.

Simply speaking:

• Overlay means the door sits on top of the cabinet structure.
• Inset means the door sits inside the cabinet opening.

The overlay style determines:

• Cabinet appearance
• Door spacing
• Required hinge type
• Installation method

2. What Are Full Overlay Cabinet Hinges?

A full overlay cabinet door covers almost the entire cabinet side panel.

The cabinet door overlaps the cabinet opening completely, leaving only a small gap between adjacent doors.

Full overlay is one of the most popular designs for modern kitchens.

Advantages of Full Overlay Hinges

Clean Modern Appearance

The cabinet surface looks continuous and streamlined.

Maximum Storage Space

The cabinet opening is optimized because the door does not sit inside the cabinet frame.

Popular in Frameless Cabinets

Many European-style frameless kitchens use full overlay designs.

Applications

Full overlay hinges are commonly used in:

• Modern kitchens
• Apartment projects
• Residential cabinets
• Commercial kitchens

3. What Are Half Overlay Cabinet Hinges?

Half overlay means two cabinet doors share one cabinet side panel.

Each door covers approximately half of the cabinet side.

This design is common in cabinets with multiple doors.

Advantages of Half Overlay Hinges

• Efficient use of cabinet structure
• Suitable for multi-door cabinets
• Cost-effective solution

Applications

Common uses:

• Traditional cabinets
• Wardrobes
• Storage cabinets
• Multi-door furniture

4. What Are Inset Cabinet Hinges?

Inset cabinet doors are installed inside the cabinet opening.

Instead of covering the cabinet frame, the door sits flush with the cabinet structure.

This creates a clean and furniture-like appearance.

Advantages of Inset Hinges

Premium Appearance

Inset cabinets create precise and elegant cabinet lines.

Classic Furniture Style

Commonly used in:

• Luxury furniture
• Traditional cabinetry
• Custom kitchens

Applications

• High-end residential projects
• Custom cabinetry
• Designer furniture

5. Full Overlay vs Half Overlay vs Inset Comparison

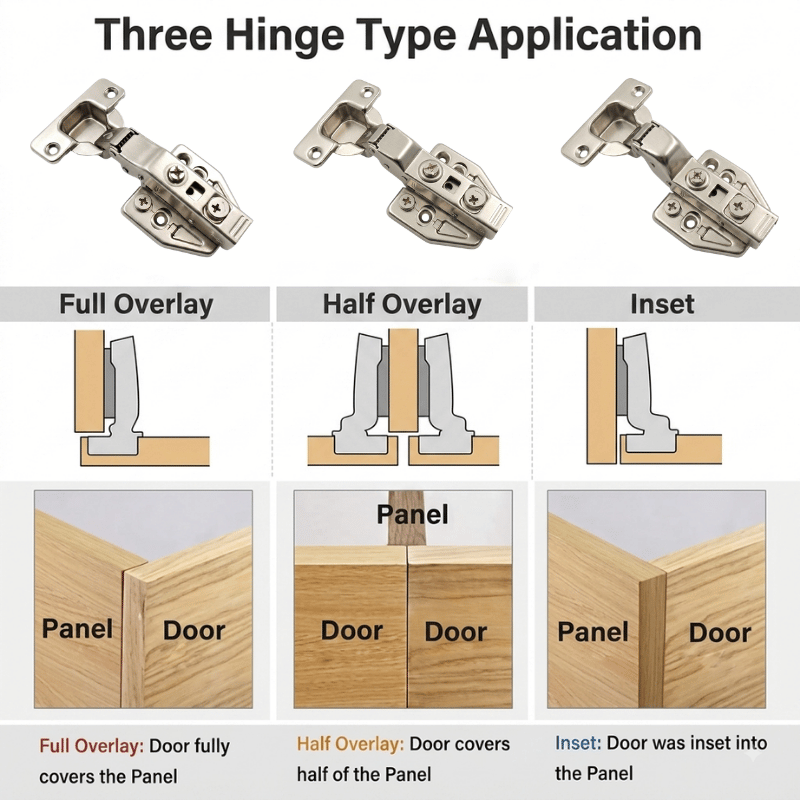

Feature	Full Overlay	Half Overlay	Inset
Door Position	Covers cabinet side	Covers part of cabinet side	Inside cabinet opening
Appearance	Modern	Traditional	Premium furniture style
Cabinet Type	Mostly frameless	Multi-door cabinets	Custom cabinets
Installation	Easier	Standard	Requires precision
Popular Market	Europe, North America	Traditional furniture	Luxury market

6. How Overlay Affects Cabinet Hinge Selection

A common mistake is selecting a hinge only based on:

• 35mm cup
• 110°
• Soft close

However, the hinge must also match:

• Door overlay
• Cabinet construction
• Door thickness
• Mounting position

For example:

A full overlay cabinet door requires a different hinge geometry compared with an inset cabinet door.

7. Relationship Between Overlay and Hinge Arm Design

In traditional furniture hardware terminology:

International Term	Common Industry Description
Full Overlay	Straight Arm Hinge
Half Overlay	Half Cranked Hinge
Inset	Full Cranked Hinge

(Exact terminology may vary by supplier and market.)

Understanding both naming systems helps buyers communicate more effectively with suppliers.

8. How to Choose the Right Hinge for Different Projects?

Kitchen Cabinet Projects

Recommended:

• Full overlay soft close hinges
• 110° opening angle

Reason:

• Modern appearance
• Easy installation
• Good user experience

Bathroom Vanity Projects

Recommended:

• Full overlay or inset depending on design
• Soft close function

Luxury Residential Projects

Recommended:

• Inset hinges
• 3D adjustable hinges

Reason:

• Premium appearance
• Precise alignment

Hotel & Apartment Projects

Recommended:

• Standardized overlay systems
• Reliable soft close hinges

Reason:

• Easy maintenance
• Consistent installation

9. Common Mistakes When Selecting Overlay Hinges

Mistake 1: Choosing the Hinge Before Confirming Cabinet Design

The cabinet structure should determine the hinge.

Mistake 2: Confusing Hinge Type and Overlay

Soft close describes closing function.

Overlay describes door position.

They are different concepts.

Mistake 3: Ignoring Door Gap Requirements

Different overlay styles require different spacing.

Mistake 4: Not Testing Before Mass Production

For large projects, samples should always be approved before production.

Frequently Asked Questions

What is a full overlay cabinet hinge?

A full overlay hinge is designed for cabinet doors that cover almost the entire cabinet side panel.

What is the difference between full overlay and inset hinges?

Full overlay doors sit on top of the cabinet structure, while inset doors sit inside the cabinet opening.

Are full overlay hinges more common?

Yes. Full overlay designs are widely used in modern kitchens, especially frameless cabinets.

Can one hinge be used for overlay and inset doors?

Usually no. Different hinge geometries are designed for different door positions.

What hinge is best for modern kitchen cabinets?

Most modern kitchens use full overlay soft close concealed hinges with approximately 110° opening.

Conclusion

Understanding the difference between full overlay, half overlay and inset cabinet hinges is essential for selecting the correct cabinet hardware.

The right hinge choice depends on:

• Cabinet construction
• Door design
• Project requirements
• Installation method
• Desired appearance

For cabinet manufacturers and project contractors, matching the hinge system with the cabinet design helps improve:

• Production efficiency
• Installation accuracy
• Cabinet quality
• End-user experience

A professional cabinet hardware supplier can provide the right hinge solution for different cabinet styles and project requirements.
